New HEDD Type 05 MKII
new:
Lineariser® on board:
Implemented in the MK2 and subwoofer models is our well-known Lineariser®, a phase linearization tool that leads to perfect impulse response and audibly improved spatial reproduction
CoP technology:
The hedd type 5 MK2 series allows the speakers to be used with or without bass ports
The MK2 monitors feature a new and improved paint finish for increased durability and appearance
The HEDD Type 05 MKii model is a true multitasker. Its strong performance, digital connectivity and compact size make it the ideal choice for mobile broadcast stations, recording studios, multi-channel configurations and VoIP conferencing. The hedd Type 5 is based on a two-way system that provides a solid foundation and a high degree of accuracy in the frequency range between 45Hz and 50kHz by coordinating the interplay between a 6″ woofer and a high-resolution Air Motion Transformer ( HEDD AMT ).

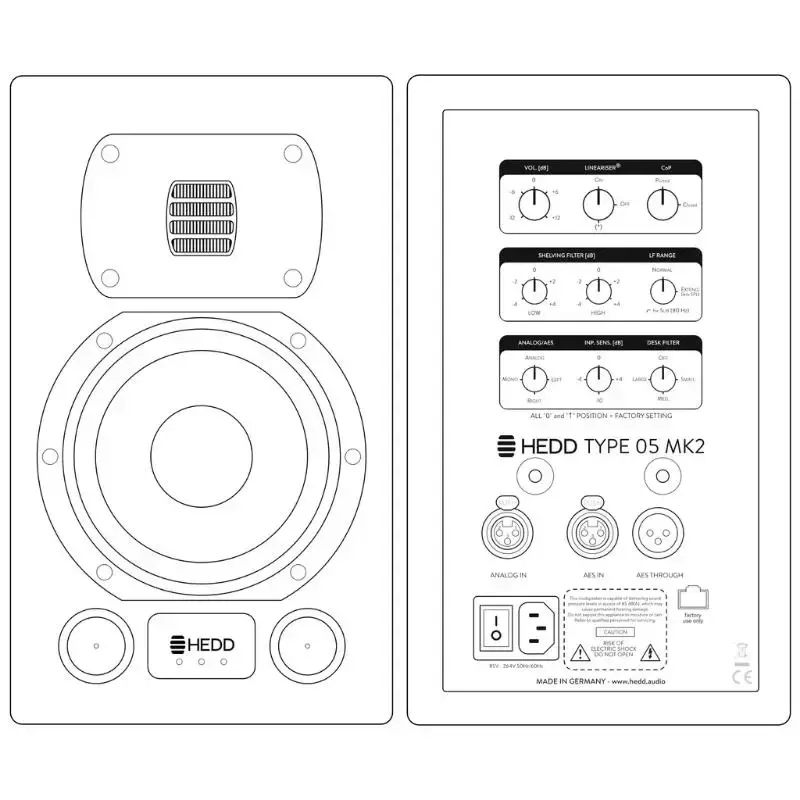

Type 05, like all our Series ONE studio monitors, is additionally equipped with a modular connection system. In addition to standard analog XLR and RCA connections, the Type 05 features an empty card slot that we designed to read Dante (Audio-over-IP) and other digital audio protocols.
Specification Hedd Type 05 MKII
- Woofer (honeycomb diaphram) 5″ (1.5″ voice coil)
- Tweeter HEDD AMT
- Crossover frequencies (48 dB/oct filters) 2.5 kHz
- Input 1: analog stereo (2 ch) / Impedance XLR / 22 kΩ
- Input 2: AES “in” XLR
- Output: AES “through” XLR
- Volume ±12dB
- Input sensitivity (A/D modulation) -10/-4/0/+4 dB
- HEDD Lineariser®, disengageable, delay: 10 ms
- Shelve filters high/low (.5 dB steps) ± 4 dB
- LF range (-3dB): normal/extended/satellite 45/38/80 Hz
- Desk Filter: Small/Medium/Large 180Hz (-1 /-2/-4dB)
- AD/DA Conversion 96kHz/32bit
- Frequency response (-3dB) 45 – 40,000 Hz
- max. SPL (sound pressure level) per pair: 112 dB SPL
- Power Amplifier /Universal Mains 110-240V 2x100W ICEpower
- Cabinet with satin lacquer finish black or white
- Dimensions (H x W x D): 308 x 180 x 245 mm
- Weight: 6.4 kg
- Warranty 2 years
