New Hedd Type 20 MKII A-Core studio monitor
When it comes to producing high-quality audio, the right equipment is essential. And one of the most important pieces of equipment in a studio is the studio monitor. The HEDD Type 20 MK2 is one of the most popular studio monitors on the market, and for good reason. More about the HEDD Type 20 MK2 and its features, sound quality, design and build quality.
Overview of the HEDD Type 20 MK2:
The HEDD Type 20 MK2 is a two-way, active studio monitor designed for use in professional recording studios, mastering suites, and broadcast facilities. It is an updated version of the original Type 20, released in 2017. The MK2 version offers several improvements over the original, including a more advanced driver, higher power handling and improved frequency response.
What’s new:
Lineariser® on board:
Implemented in the MK2 and subwoofer models is our well-known Lineariser®, a phase linearization tool that leads to perfect impulse response and audibly improved spatial reproduction.
The MK2 monitors have a new and improved paint finish for increased durability and a better appearance. The monitors will also be available in white.
CoP technology:
The MK2 series allows the speakers to be used with or without bass ports. Users can now choose between the energy and bass capabilities of a modern bass port design and the meticulous precision and control of a closed cabinet approach.
Phase Linear Sat-Sub System:
We introduce a fully phase linear Sat-Sub system. These are the first Satellite Sub systems to be completely “…just on time” by applying switchable group delay to the satellite output. The potential listening distances between subwoofers and satellites can be compensated in a range of ± 2 m.
The HEDD Type 20 MKII is a full-fledged three-way system in a slim smart housing. It gives you the best of both worlds: handy dimensions to easily fit the speakers into compact recording, mastering or advanced home studios and the complete features of a full midfield system
The Hedd Type 20 MKII is based on a strong rubber-coated cabinet, which houses our proprietary Honeycomb sandwich woofers (7″ bass / 4″ midrange) and the HEDD Air Motion Transformer tweeter for the most vivid and accurate high-frequency reproduction. contains. Three 300W Class-D ICEpower modules operate in the amplifier section of these analog speakers. The sound from this ultra-compact monitor is simply magical: pristine, powerful and effortless with all the benefits you get from a dedicated three-way system. The Type 20 stands out for its beautiful clarity in the midrange, offering better dynamics and increased three-dimensionality across the entire soundstage. With a frequency spectrum ranging from 50 kHz to 32 Hz, the Type 20 can manage the most complex and challenging audio situations.

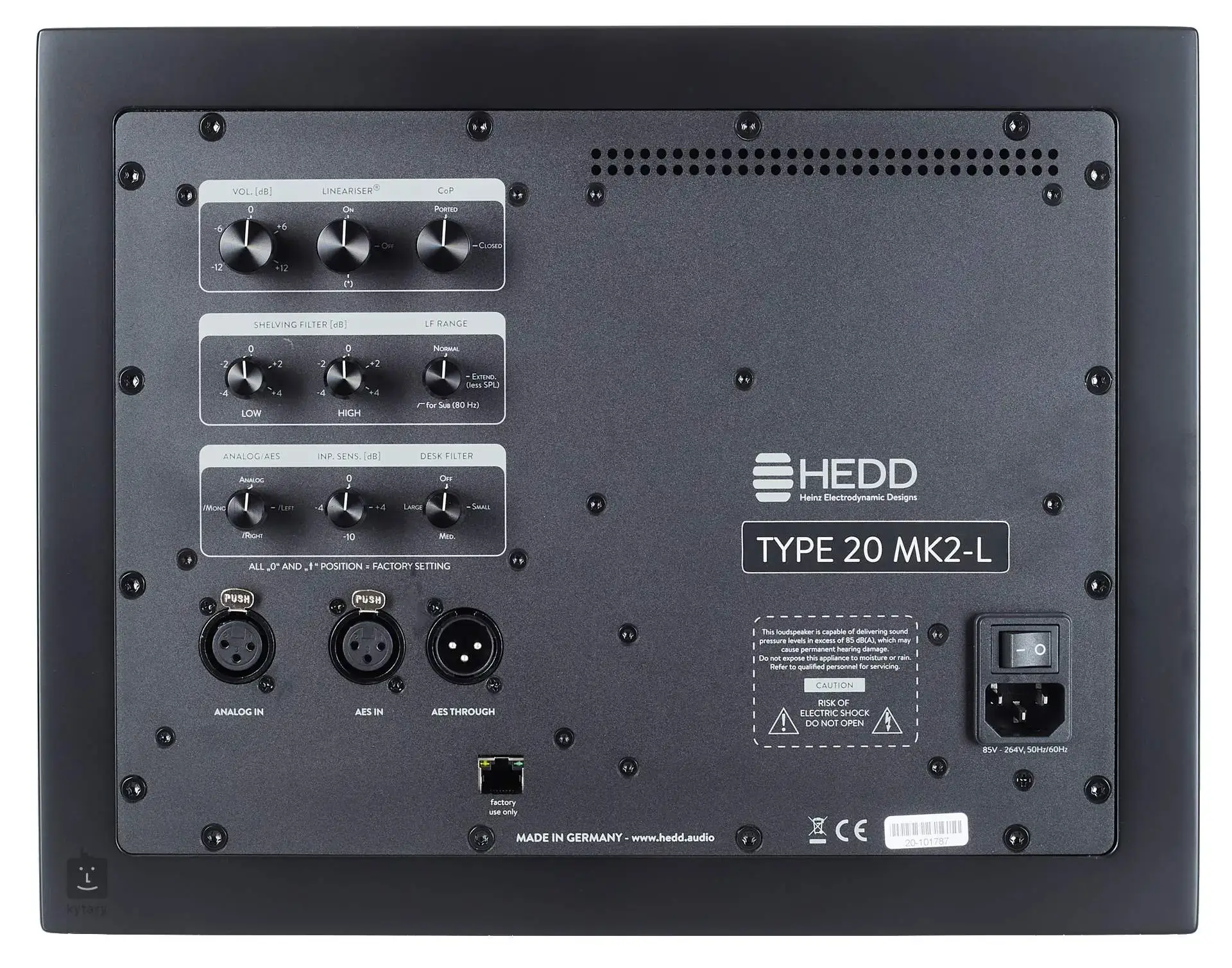

The Hedd Type 20 MK2 includes the versatile HEDD Bridge card system. In addition to standard analog connections (XLR/RCA), you can insert optional input cards for full Dante/Audio-over-IP functionality into the free slot on the rear panel of the speaker.
Specification Hedd 20 MK2
- Woofer (honeycomb diaphragm) 7″ (2″ voice coil)
- Mid Range (Honeycomb Diaphragm) 4″ (1.25″ Voice Coil)
- Tweeter HEDD AMT
- Crossover Frequencies (48 dB / Oct filters) 250 / 3,200 Hz
- Input 1: analog stereo (2 ch) / impedance XLR / 22 kΩ
- Input 2: AES “in” XLR
- Output: AES “to” XLR
- Volume ± 12dB
- Input Sensitivity (A / D modulation) -10 / -4 / 0 / + 4 dB
- HEDD Lineariser®, can be switched off, delay: 10 ms
- Shelf filters high/low (0.5 dB steps) ± 4 dB
- LF Range (-3dB): Normal / Extended / Satellite 32/26/80 Hz
- Desk filter: small / medium / large 180 Hz (-1 / -2 / -4dB)
- AD / DA conversion 96 kHz / 32-bit
- Frequency range (-3dB) 32 – 40,000 Hz
- max. Height SPL (sound pressure level) per pair: 120 dB SPL
- Power amplifier / universal power supply 110-240 V. 3×300 W ICEpower
- Cabinet finished with satin lacquer black or white
- Dimensions (H x W x D): 280 x 358 x 338 mm
- Weight: 15.4 kg
- Warranty 2 years
