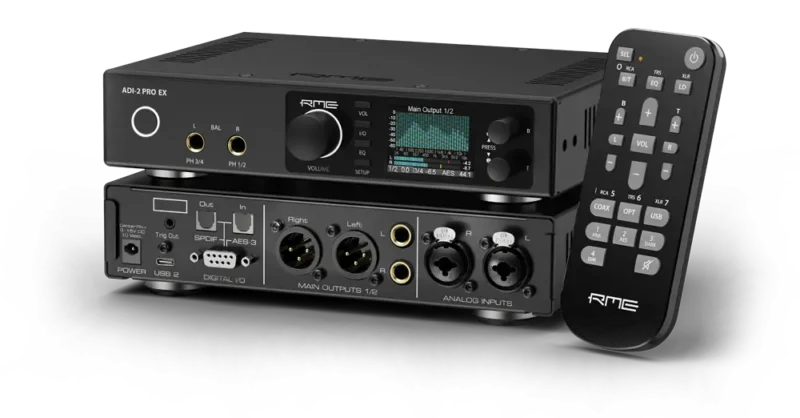

RME ADI-2 Pro EX

RME ADI-2 Pro EX: The Next Evolution in Reference Conversion

The RME ADI-2 Pro EX marks the latest milestone in the illustrious history of RME’s reference converters. Building on the legendary success of the ADI-2 Pro FS R Black Edition, the EX version takes this concept to the next level. With a completely redesigned chassis, improved performance, and advanced hardware protection, this isn’t just another update—it’s the ultimate “all-in-one” solution for the most demanding studio professionals and audiophiles.

The Evolution: What’s New in the EX?

RME has listened to the needs of users worldwide. The ADI-2 Pro EX is not just a revision, but a refinement of a proven design:

• Optimized Housing: The new housing is larger and features improved ventilation. This ensures better cooling efficiency, which extends the lifespan of the components and ensures more stable operation during extended sessions.

• Enhanced Hardware Protection: The EX Series features advanced circuitry for maximum reliability, including automatic overvoltage detection and polarity protection. This makes the device even more robust in complex studio environments.

• Improved Headphone Performance: Thanks to refinements in the internal circuit design, the EX delivers even better performance at the headphone outputs, resulting in even greater control and detail, regardless of your headphones’ impedance.

• Trigger Output: A brand-new feature is the 12V Trigger Out (3.5mm), which allows you to automatically turn external devices, such as power amplifiers, on and off in sync with your ADI-2 Pro EX.

• Lockable USB-C: The switch to a rugged, lockable USB-C port ensures a more stable connection and meets modern professional standards.

The Ultimate “All-in-One” Studio Partner

Under the hood, the ADI-2 Pro EX combines multiple devices into a single compact 9.5-inch enclosure. Whether you use it for mastering or as an interface:

1. Reference: AD/DA Conversion

With support for sample rates up to 768 kHz and DSD playback/recording, the EX offers a crystal-clear signal path. The combination of the AK5574 (ADC) and AK4493 (DAC) delivers a level of transparency that is rare in the industry.

2. Extreme Power Headphone Amplifiers

The two independent stereo “Extreme Power” outputs are in a class of their own. With negligible output impedance and an extremely low noise floor, they can bring even the most demanding high-end headphones to their full potential. The new hardware protection safeguards both your ears and your valuable headphones from audio spikes.

3. Digital Hub & I/O

The EX is a true chameleon in your digital workflow. The included breakout cable provides AES/EBU and SPDIF (coaxial) connectivity, while the optical input/output seamlessly switches between SPDIF and ADAT. In “Multichannel” mode, it functions as a 6-in/8-out interface, ideal for complex routing tasks.

DSP & Analysis: Tools for the RME ADI-2 Pro EX

What really makes the ADI-2 Pro EX indispensable is its powerful built-in DSP. This allows you to make adjustments without putting a strain on your DAW’s processor:

• 5-band Parametric EQ: Perfect for individual headphone equalization or correcting your studio monitors.

• Binaural Crossfeed: Simulate the spatial sound of speakers through your headphones to reduce listening fatigue.

• Spectrum Analyzer: RME’s renowned 30-band analyzer is clearly visible on the high-quality IPS display. This provides unparalleled real-time visual feedback on your audio.

• Loudness & Bass/Treble: Thanks to the intelligent loudness feature, the balance in your music is perfectly preserved, even at lower listening volumes.

Why the RME ADI-2 Pro EX Is the Right Choice

In 2026, RME remains the gold standard for stability. The SteadyClock FS (femtosecond accuracy) ensures a jitter-free signal that eliminates the need for any external clock source. Furthermore, the EX is fully Class Compliant, making it “Plug & Play” for macOS, iOS, and Windows (via the renowned MADIface drivers).

Key Specifications for the RME ADI-2 Pro EX

• Connections: 2x analog inputs (XLR/TRS combo), 2x XLR outputs, 2x TRS outputs.

• Digital: USB-C (lockable), ADAT/SPDIF (optical), AES/EBU, SPDIF (coaxial).

• Display: High-resolution IPS with status notifications and an analyzer.

• Design: Larger housing with active ventilation and elegant chrome feet.

• Compatibility: Works seamlessly with the new RM19-III rackmount solutions.

Conclusion: The RME ADI-2 Pro EX is the answer for anyone who won’t settle for “good enough.” It’s an investment in a device that’s unmatched in terms of flexibility, build quality, and sonic integrity. Whether you want to hear the finest details of a master recording or are looking for the ultimate DAC for your high-end setup, the EX delivers.

Are you ready to take your audio experience to the very next level with the RME ADI-2 Pro EX, or do you need help integrating it into your current studio?
