Universal Audio Volt 4 Max

Why Choose the Universal Audio Volt 4 Max?

1. Tone Shaping & Max Processing (Over 18 Sound Combinations)

Instantly give your recordings the analog tone you want without latency or complicated software settings:

• 3 Tone Shaping Modes: On each channel, choose between Warmth (rich UA 610 tube sound), Focus (tight solid-state clarity), or Shine (open, airy British Class-A high-end).
• Max Processing Presets: Onboard analog dynamics processing with 6 custom compressor presets for vocals, guitar, and bass (such as Rap Vocal, Album Vocal, Electric Guitar, and Tight Bass), based on legendary 1176, LA-2A, and VCA hardware.

2. Superior 32-Bit / 192 kHz Audio Conversion

Thanks to a dynamic range of 119 dB on the inputs and 126 dB on the monitor outputs, you can capture every musical nuance with razor-sharp clarity. From subtle acoustic instruments to powerful vocal signals: your mixes remain transparent, detailed, and noise-free.

3. Extensive Connectivity: 12 In / 6 Out with ADAT Expansion

. Effortlessly connect all your studio equipment. In addition to the analog inputs, the Volt 4 Max features an optical ADAT/S/PDIF input. This allows you to easily expand the interface with up to 8 additional digital channels for recording drums, synthesizers, or an entire band.

4. Professional Monitoring: Speaker Switching & Talkback

• Main / Alt Speaker Switching: Switch between two different sets of studio monitors with the push of a button to check your mix on multiple systems.
• Built-in Talkback Microphone: Communicate directly from your control room with musicians in the recording room.
• Two Headphone Outputs: Equipped with a 6.3mm TRS and a 3.5mm stereo headphone jack (with a dedicated cue mix) for seamless collaboration.

5. Smart Display, Auto-Gain & Clip Protection

• Full-Color Smart Display: Provides immediate, clear visual feedback on levels, selected settings, and real-time gain reduction from the compressor.
• Auto-Gain: Let the Volt 4 Max automatically determine the ideal recording level in just a few seconds.
• Clip Protection: Prevent distorted recordings caused by unexpected loud peaks; the hardware automatically intervenes to prevent clipping.
• Loopback & USB Hub: Built-in loopback for live streams and podcasts, plus an integrated USB hub for connecting MIDI controllers.

Technical Specifications of the Volt 4 Max

Audio and Conversion

• Audio Quality: 32-bit / 192 kHz AD/DA conversion
• Dynamic Range: 119 dB (inputs), 126 dB (monitor/line outputs)
• Preamp Gain: 60 dB digitally controlled gain with individual +48V phantom power per channel

Entrances and Exits

• Simultaneous I/O: 12 Inputs / 6 Outputs

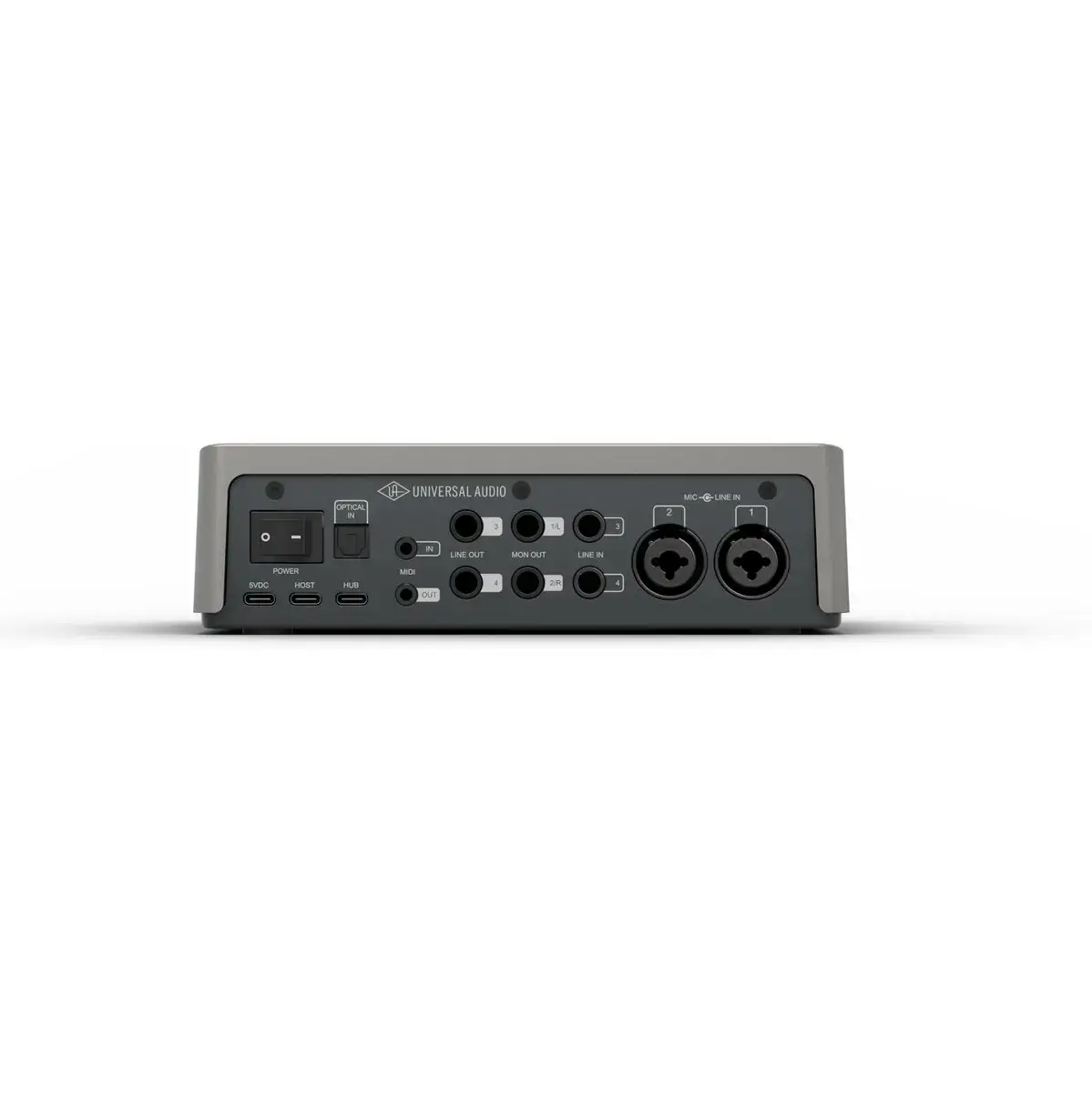

• Analog Inputs: 2x Combo XLR/TRS (Mic/Line) on the rear panel + 2x Hi-Z Instrument (1/4″ TS) on the front panel + 2x Line Inputs (1/4″ TRS)
• Analog Outputs: 2x 1/4″ TRS monitor outputs (Main/Alt) + 2x line outputs (DC-coupled)
• Digital I/O: Optical ADAT / S/PDIF input (up to 8 digital channels)
• Headphones: 2x Stereo headphone outputs (1/4″ and 3.5mm TRS)
• Connections: MIDI In/Out (3.5mm Type-A), built-in USB hub, and USB-C (bus-powered or externally powered via USB-C)

Includes Premium UAD Software & LUNA DAW

Complete Software Studio Bundle

When you register the Volt 4 Max, you instantly transform your computer into a complete professional recording studio:

• LUNA Digital Audio Workstation: Universal Audio’s award-winning and seamlessly integrated recording software.
• UAD Plug-ins Bundle: A comprehensive collection of legendary EQs, compressors, virtual instruments (such as the PolyMAX synth), and guitar amps used by the world’s best producers.

Conclusion: The Ultimate Choice for the Versatile Studio

The Universal Audio Volt 4 Max delivers everything a modern producer or studio owner needs: more inputs, comprehensive monitoring with speaker switching, analog-inspired Max Processing, and the expandability of ADAT. It’s the ideal investment for anyone who wants to make professional recordings without compromise.

Experience the power of the Volt 4 Max for yourself!
