Audio and MIDI interface for live performance
PlayAUDIO1U is designed to support live performance at a professional level. It is a deeply thought-out, bulletproof, fail-proof and custom-built interface that provides both pristine audio output and extensive MIDI connectivity for your entire stage. It is perfect for controlling and playing backing tracks, virtual instruments or whatever you can think of that requires computers in a live environment.
Layers of protection
Because PlayAUDIO1U is built for touring, even the smallest details have been considered.
PlayAUDIO1U secures your show from interference by using iConnectivity’s famous redundancy of multiple computers. It listens to your software and when problems occur, it automatically switches computers faster than anyone can hear. It does this by listening to MIDI or audio from your computer (or both).
PlayAUDIO1U introduces a new kind of protection to your performance. In addition to listening for software or computer glitches, it can listen to the audio streams coming from your computers and through itself. At the slightest indication of an audio problem, it can mute the audio to the main outputs and give the operator diagnostic information via the display. This helps protect everyone from bad audio, noise, etc. going through the outputs to the PA system, monitors, etc.
The PlayAUDIO1U display – your virtual assistant
Like your own virtual assistant, the display provides information about what is happening in your world. Enjoy real-time information such as MIDI monitoring and audio levels. The display also gives you alerts if computers go down or if there are problems elsewhere in the system.
With PlayAUDIO1U’s display, getting a good setup and/or troubleshooting has never been quicker or easier.
Made for touring!
12 Panel amplified XLR outputs:

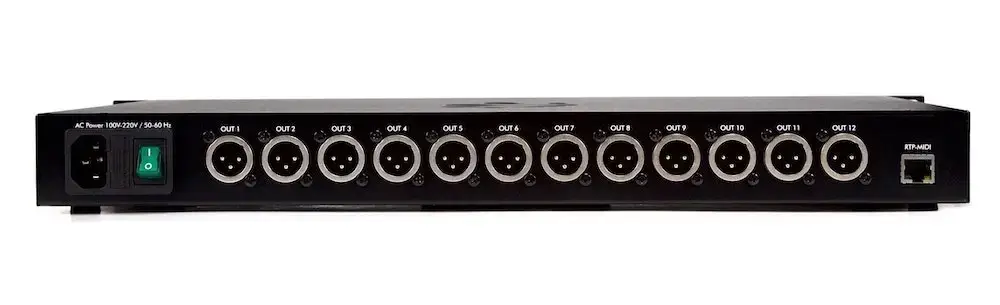

The back of the PlayAUDIO1U is ready for your performance. Connect it directly to your snake, wiring harness or stage box and get to work. In addition, the XLR jacks are reinforced by the chassis, making them more resistant to the rigors of the road.
1U Rackmountable chassis:
Place the PlayAUDIO1U in your rack or use it alone. He is super flexible.
Switchable power supply with IEC connector:
No wall warts needed! Thanks to the switchable 100v – 220v 50-60hz IEC connection, PlayAUDIO1U is compatible all over the world! Just plug in PlayAUDIO1U and done.
PlayAUDIO1U is a MIDI maniac
At iConnectivity, they have been world leaders and innovators in MIDI connectivity for many years. We’ve put everything they know about MIDI in live performance into the PlayAUDIO1U.
PlayAUDIO1U can act as your main MIDI manager for your live performance. Connect devices via the built-in 5-pin MIDI Din, USB host port, connected computers and even to the network via RTP MIDI.
Once everything is connected, you can control which MIDI goes where and when. For example, with iConnectivity’s powerful MIDI processing, you can easily send MIDI to connected computer devices while sending just one set of program changes to connected peripherals, send all notes away when a computer malfunctions to avoid stuck notes, filter out extraneous CCs and much more…
It is a beast in the MIDI field. The famous flexibility of iConnectivity is built in.
Key features
- 12 balanced XLR outputs with amplified panels
- Integrated +48v phantom power resistor on outputs protects your interface from accidental damage when connected directly to consoles or stage boxes (please note that we cannot guarantee 100% protection indefinitely. It is best not to send +48v phantom power to the outputs of an audio interface)
- 1x 1/4″ TRS stereo headphone output with dedicated control for convenient headphone monitoring
- USB MIDI host port, provides up to 8 ports of USB MIDI for Class Compliant controllers and/or modules.
- DIN-MIDI port built-in (1 in 1 out)
- Ethernet MIDI with 22 ports for robust MIDI connections over long distances
- Comprehensive audio mixing and routing between connected USB computers and analog outputs
- User-friendly capacitive touch controls and 2 rotary encoders provide software-free control of PlayAUDIO1U’s key functions from the front panel
- 100-240v switching power supply built-in with industry-standard IEC power connector
- 2x USB C ports for connecting computer equipment
- Automatic and manual computer switching modes, for lightning-fast switching between connected computers
- 2x 2-button “Control” footswitch selectable inputs/outputs can be assigned to MIDI functions, control numerous functions on the interface and/or send control messages to compatible devices
- Audio protection helps prevent unwanted noise from corrupted audio sources/files from reaching the audience
- The Auracle software lets you fine-tune the PlayAUDIO1U’s settings exactly to your needs.
- High-resolution audio – studio sound quality for the live arena – up to 24-bit/96kHz AD/DA conversion
- “MIDI learn” from external MIDI devices to control key functions on the interface
- OLED screen for instant status information and precise operation
- 1U turnkey chassis for rack mounting
