Presonus Monitor Station
Take control of your monitors
Monitor Station V2: The solution for managing speakers on the desktop
Equip your studio with pro track monitoring features.
Manage multiple audio sources and sets of monitor speakers, track with illegally loud headphone amps, and talk back to your drummer – all from your desktop.
Switch quickly and easily between up to four audio sources with a selection of input types.
Managing a monitoring system is more than I/O, level controls, and talkback. Presonus Monitor Station V2 offers powerful options that let you configure it for the way you work
With its intuitive layout, extensive features and I/O and PreSonus®’s renowned sound quality, the Monitor Station V2 offers a versatile, convenient and affordable solution for managing your studio monitoring system from your desk. Switch quickly and easily between up to four audio sources, including two pairs of balanced ¼-inch inputs and a third input channel that can be powered from an S/PDIF digital input (up to 96 kHz), unbalanced RCA Aux inputs with gain control and a ⅛-inch TRS unbalanced input. One button switches between analog Aux and digital S/PDIF inputs
You can listen to up to three stereo pairs of speakers on the presonus monitor , each with separate level control. All speakers can be available, or one pair at a time, or you can choose between speakers A and B, with output C active to feed a subwoofer. You can set the level of each set of speakers separately, so when you switch between speakers, your monitoring level remains the same.
Four loud, clear ¼-inch TRS headphone outputs ensure that everyone hears every note. Each monitor station headphone output has a Main/Cue bronze elector and individual output level control. The built-in Talkback microphone with condenser lets you communicate with musicians. A fiery red Talk button activates the microphone and attenuates the cue signal. LED meters with eight segments and three colors indicate left and right signal levels and can be set to +4 dB, +10 dB or +18 dB.
Monitor station specification

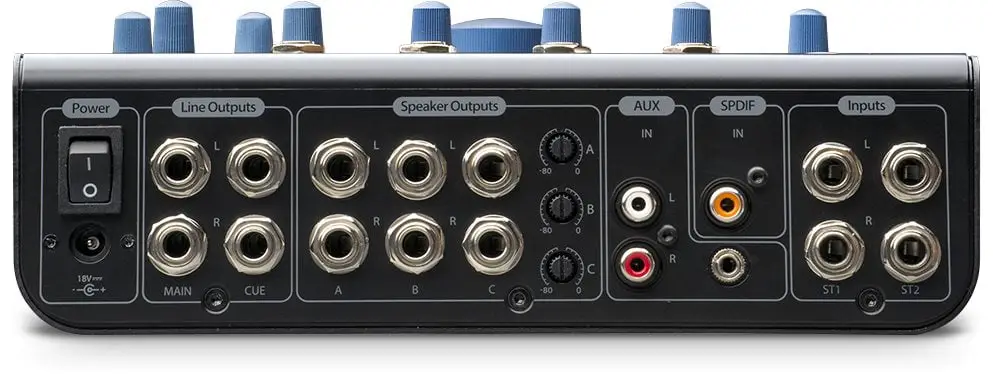

- 2 Stereo pairs of ¼-inch TRS inputs, 1 stereo pair of RCA Aux inputs with level control and 1 stereo S/PDIF coaxial digital input (44.1/48/88.2/96 kHz)
- 3 Stereo pair of ¼-inch TRS speaker outputs with level control, 1 Stereo pair of ¼-inch TRS main outputs and 1 Stereo pair of ¼-inch TRS Cue outputs
- 4 ¼-inch TRS screaming-loud stereo headphone outputs
- Large main level control
- 3 Individual main source selector switches (ST1, ST2, Aux)
- 3 separate speaker selector switches
- Cue section with source selection (ST1, ST2, Aux) and output level control
- Main switches Mute, Mono and Dim with variable Dim attenuation
- 8-segment color LED input meters with selectable reference level
- Built-in electret-condenser talkback microphone with input gain control and Talkback
