BomeBox™: the MIDI Hub for Stage and Studio
The BomeBox is the solution for connecting and mapping devices via MIDI, Ethernet, WiFi and USB (without the need for a computer). Cross-connect USB-MIDI devices (powered by the BomeBox), MIDI 5-pin DIN, other BomeBoxes and computers.
Main features of the BomeBox
- Robust, reinforced ABS housing

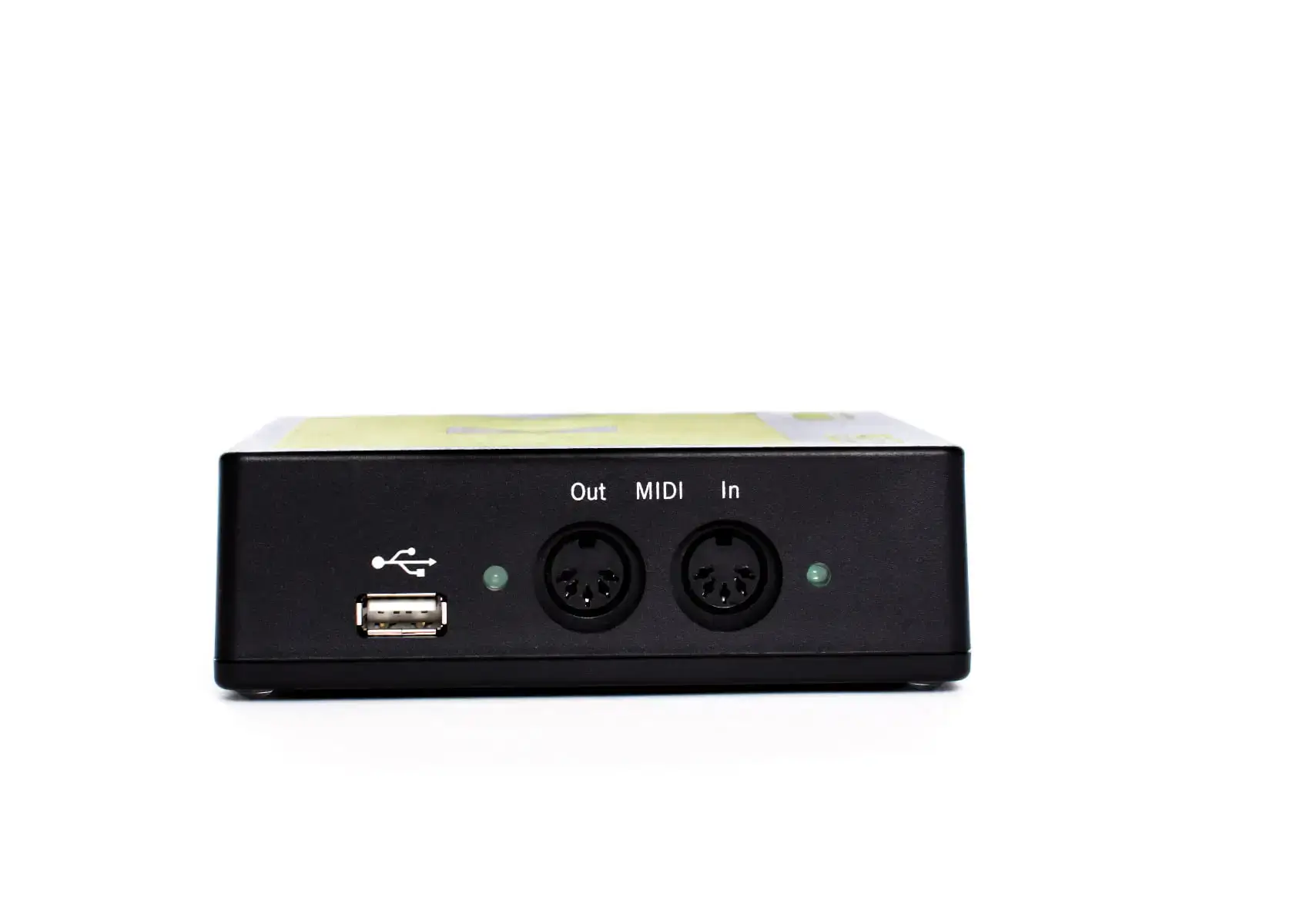

- MIDI DIN: 1x input, 1x output. You can add more via USB host
- USB Host Type A: Supports USB-MIDI devices, USB hubs,
- Multi-port USB MIDI Devices
- Built-in MIDI Router: Unlimited Virtual MIDI Patchbay
- Fast reconfiguration via tablet, smartphone or computer
- Make long-distance MIDI connections via Ethernet
- MIDI Networks: Centralized access to all MIDI devices connected to the Ethernet network
- Built-in 2-port Ethernet switch
- Wireless MIDI connections via built-in WiFi
- WiFi works as a hotspot, hub or client
- Connects to Windows and macOS via Ethernet or WiFi (Bome Network tool)
- Allen & Heath dLive, GLD, Qu, SQ and iLive mixer support over Ethernet (since firmware v1.2)
- Unlimited assignments / splits / scenes / conditional routing and MIDI processing with built-in MIDI Translator Pro engine
- Use USB QWERTY keyboards and mapping to MIDI (since firmware v1.3)
- Standard power supply: 5V micro USB
- Extra robust power supply: Power-over-Ethernet (PoE) with 48V
- Pass PoE and MIDI connections through the PoE Out port
- Small and light: 180 g / 6.3 oz
